Manual Driving Mode Basic True Double Ball Union for Normal Temperature Pipeline Systems

Model NO. : QX

Structure : Fixed Ball Valve

Type : Fixed Ball Valve

Function : Shutoff

Temperature : Normal Temperature

Standard : DIN, ANSI, NPT, BS, JIS

Application : Industrial Usage, Water Industrial Usage, Household Usage

Color : Light Gray, Deep Gray, Black, White

Standard Like : DIN, BSPT, ASTM, ANSI

Quality : EPDM Rubber+PVC Ball+PVC Handle, High Thickness

Package : Plastic Bag Each One, Stron Export Carton

Feature : New Fashion Handle, Easy Use, Long Service Life

Transport Package : Carton, Polybag, Color Box or Customized

Specification : 1/2′, 3/4′, 1′, 1-1/4′, 1-1/2′, 2′, 2-1/2′, 3", 4"

Trademark : QX

Origin : Zhejiang, China

HS Code : 8481804090

Supply Ability : 70000 Piece /Month

Media : Water

Material : PVC

Connection Form : Socket or Threaded

Driving Mode : Manual

Nominal Pressure : Pn10, Pn16

Channel : Straight Through Type

Samples : US$ 1/Piece 1 Piece(Min.Order) | Request Sample

Customization : Available | Customized Request

MOQ : 1pc

Packaging Details : Customized

Delivery Time : 5-8 days

Payment Terms : L/C,T/T

Contact Now

Specification:

*NO.*	*PART*	*Material*	*QTY*
1	Body	PVC,CPVC,ABS	1
2	Ball	PVC,CPVC,ABS	1
3	Stem	PVC,CPVC,ABS	1
4	Handle	ABS	1
5	Seat Seal	TPE,PTFE	2
6	Union Nut	PVC,CPVC,ABS	2
7	End Connector	PVC,CPVC,ABS	2
8	Seal Carrier	PVC,CPVC,ABS	1
9	O-Ring	EPDM,FPM	1
10	O-Ring	EPDM,FPM	2
11	O-Ring	EPDM,FPM	2

Dimensions:

*SIZE*	*DIN(MM)*	*BS(MM)*	*JIS(MM)*	*ANSI(MM)*	*NPT Thd./in*	*BSPT Thd./in*	d2	D1	D	I	L1	L2
DN15 (1/2")	20	22	22	21.34	14	14	14	27.6	51.2	20.1	65	112.5
DN20 (3/4")	25	26	26	26.67	14	14	18.7	35	65.5	24.6	75	130.2
DN25 (1")	32	34	32	33.4	11.5	11	24	43	73.7	28	85	142.5
DN32( 1 1/4")	40	42	38	42.16	11.5	11	32	52	86.6	31	97	161
DN40(1 1/2")	50	48	48	48.26	11.5	11	40	61	102	31.5	110	166.5
DN50 (2")	63	60	60	60.33	11.5	11	50	75	120	40	133.5	214
DN65( 21/2")	75	75	76	73.03	8	11	60	90	135	40	161	228
DN80 (3")	90	89	89	88.9	8	11	79	108	188	48	200	269
DN100 (4")	110	114	114	114.3	8	11	99	135	216	56	240	309

Products advantages:

No leak, positive shut off.
Pressure retaining test for each piece.
Excellent flow characteristics and flow control.
Switch test for each piece.
Standard pressure test for each piece
Steady opening and closing, lower torque, ergonmic handle.

Production process:

Each product will be done the leakage test!

Manual Driving Mode Basic True Double Ball Union for Normal Temperature Pipeline Systems

Handle options:

Manual Driving Mode Basic True Double Ball Union for Normal Temperature Pipeline Systems

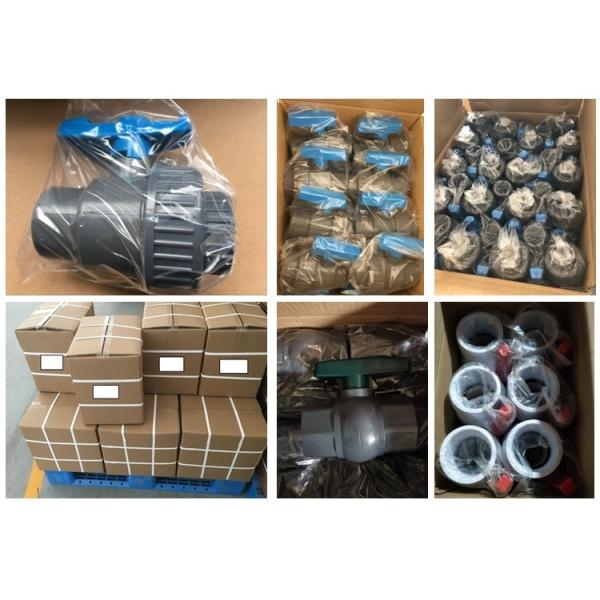

Packing:

Application:

Agricultural irrigation
Swimming pool
Sewage treatment
Water treatment
Piping system
Water recycling project

Manual Driving Mode Basic True Double Ball Union for Normal Temperature Pipeline Systems

Certificate:

Our strength:

About product:

100% new materials.
Environmental friendly product with non-toxic.
Good looking and life long service.
Quality will be strongly controlled while producing, testing and packing before leaving the factory.
Wonderful ability in chemical corrosion resistance.
Easy and fast installation, lowering the cost.
Customized.

About service:

We have full exporting experience to Southeast Asia, Africa, Middle east, North America and South America.
Different quality and thickness valves with various style offered to meet customer's need from region to region.
Free samples offered.
Each order will be carefully taken of even the order quantity is small.
After-sale will be responded and solved in short time.
OEM is available.
Quick and stable delivery time.
